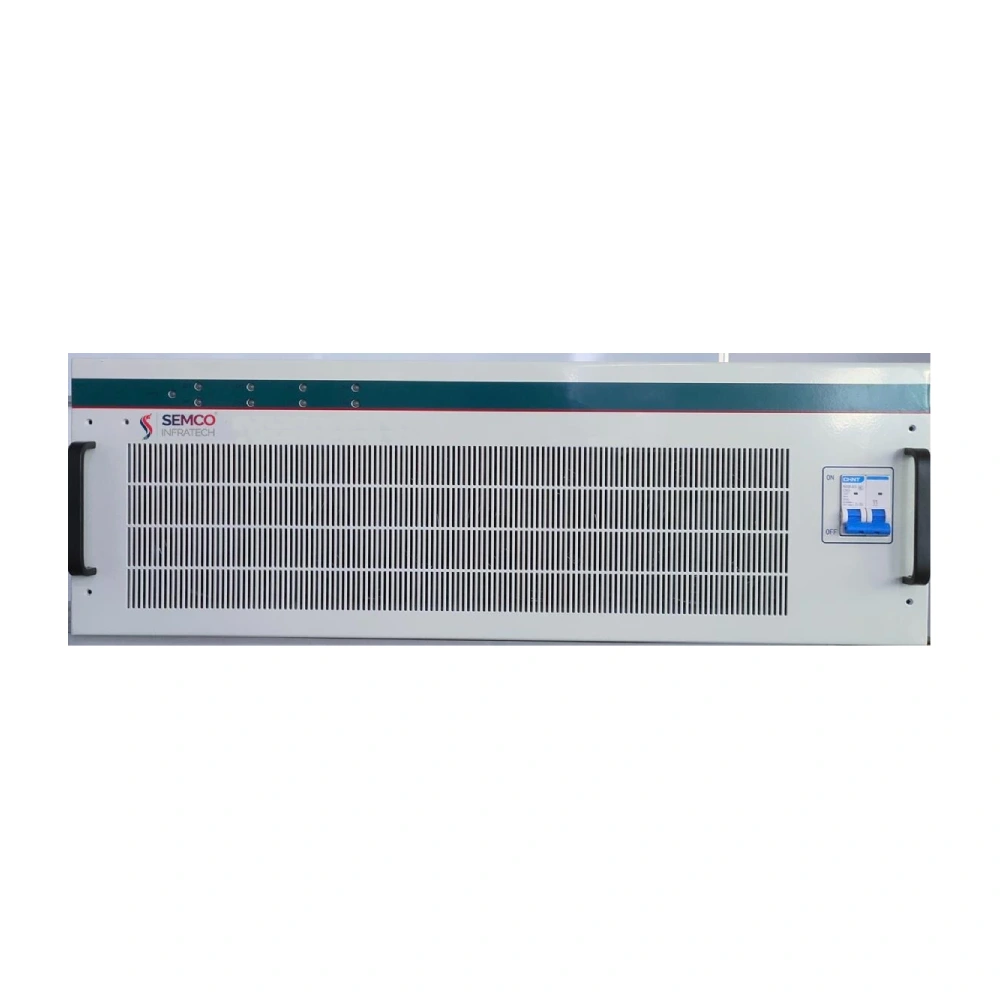

Semco SI CT 5V 60A 8CH

Channel numbers 8 CH
Stop conditions for channel Time, total voltage, total current, capacity, etc.
Channel current Minimum output current 300mA

Inquire Now
Please enable JavaScript in your browser to complete this form.
Name

Description

  • High-precision calibration: charging current, discharge current, charging voltage and discharge voltage are all calibrated by Agilent with high precision to ensure the accuracy of current and voltage within 0.5‰.
  • Independent channels with configurable parameter and condition setting for each individual channel.
  • Equipped with complete input and output devices, hardware and software protection, polarity reverse
  • protection, power failure protection and etc.
  • Precise control without overshoot during CC-CV and CV-CC transition.
  • Modular design, convenient for maintenance.
  • Strong software system and friendly HMI (Human-Machine-Interface).
  • Charge and discharge test, partition capacity and cycle life and other performance tests, software function, friendly human-machine interface.
  • Segmental range design, in the operation of the equipment, according to the different output value of the internal intelligent adjustment of the range of the equipment, to ensure the high precision of each stage.
  • Excellent thermal performance, unique duct design, through forced air cooling to reduce the impact of high temperature on equipment performance. The dual fan mode is adopted to carry out forced ventilation and cooling for the power cooling module, and the thermal imager is used for thermal
  • Simulation tests to ensure that the cooling device works within a reasonable temperature range.
  • Channels can be detachable, can be customized according to the needs of each channel in the same box in free parallel, to be compatible with a variety of types of battery test, give full play to the same type of multi- purpose equipment, save equipment costs for customers
  • Multiple conditions (capacity, time, open circuit voltage, discharge platform, etc.) for battery sorting.
  • Automatically calculate the constant current charge ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data.
  • The power supply is independent to ensure that the circuit output is even in the process of power supply operation and there is no protection problem.
  • Curve analysis and processing: curve analysis function. Can flexibly select the cycle that needs to be displayed, a variety of curve combinations (such as voltage, current, capacity-time; capacity-voltage; cycle times-charge- discharge.
